Web Programming Step by Step

Lecture 20
XML

Reading: 10.3 - 10.4

Except where otherwise noted, the contents of this presentation are Copyright 2009 Marty Stepp and Jessica Miller.

Valid XHTML 1.1 Valid CSS!

What is XML?

Anatomy of an XML file

<?xml version="1.0" encoding="UTF-8"?><!-- XML prolog -->
<note><!-- root element -->
	<to>Tove</to>
	<from>Jani</from><!-- element ("tag") -->
	<subject>Reminder</subject><!-- content of element -->
	<message language="english"><!-- attribute and its value -->
		Don't forget me this weekend!
	</message>
</note>

Uses of XML

Pros and cons of XML

pro:

con:

What tags are legal in XML?

Doctypes and Schemas

XML and Ajax

Ajax bleach

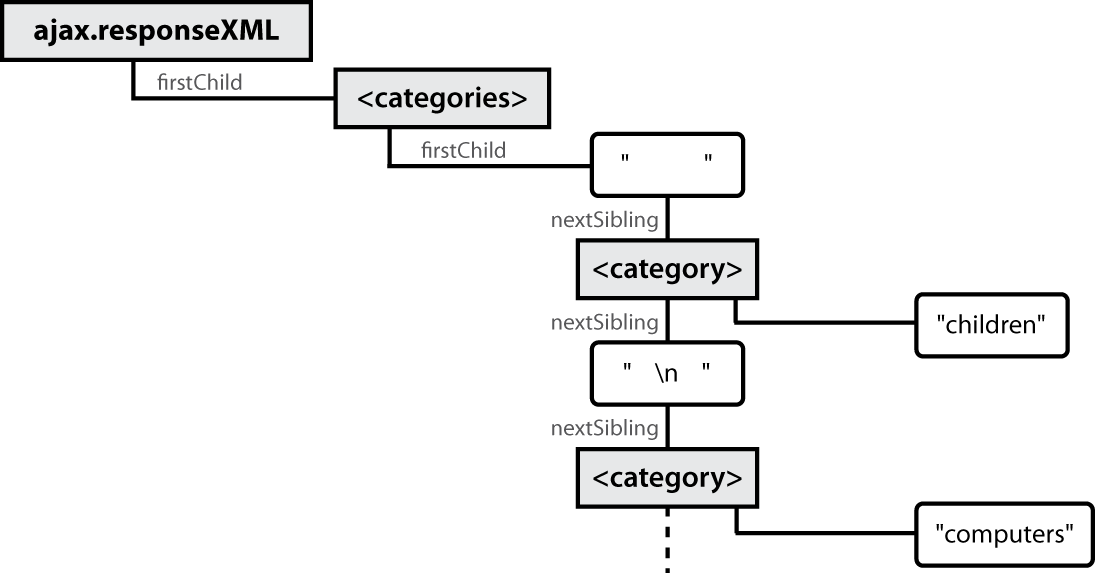

XML DOM tree structure

node tree
<?xml version="1.0" encoding="UTF-8"?>
<categories>
  <category>children</category>
  <category>computers</category>
  ...
</categories>

Recall: Javascript XML (XHTML) DOM

The DOM properties and methods* we already know can be used on XML nodes:

* (though not Prototype's, such as up, down, ancestors, childElements, descendants, or siblings)

Navigating the node tree

Using XML data in a web page

Procedure:

  1. use Ajax to fetch data
  2. use DOM methods to examine XML:
    • XMLnode.getElementsByTagName()
  3. extract the data we need from the XML:
    • XMLelement.getAttribute(), XMLelement.firstChild.nodeValue, etc.
  4. create new HTML nodes and populate with extracted data:
    • document.createElement(), HTMLelement.innerHTML
  5. inject newly-created HTML nodes into page
    • HTMLelement.appendChild()

Fetching XML using AJAX (template)

	new Ajax.Request(
		"url",
		{
			method: "get",
			onSuccess: functionName
		}
	);
	...

function functionName(ajax) {
	do something with ajax.responseXML;
}

Analyzing a fetched XML file using DOM

<?xml version="1.0" encoding="UTF-8"?>
<foo bloop="bleep">
	<bar/>
	<baz><quux/></baz>
	<baz><xyzzy/></baz>
</foo>

We can use DOM properties and methods on ajax.responseXML:

// zeroth element of array of length 1
var foo = ajax.responseXML.getElementsByTagName("foo")[0];

// ditto
var bar = foo.getElementsByTagName("bar")[0];

// array of length 2
var all_bazzes = foo.getElementsByTagName("baz");

// string "bleep"
var bloop = foo.getAttribute("bloop");

Exercise: Late day distribution

Recall: Pitfalls of the DOM

<?xml version="1.0" encoding="UTF-8"?>
<foo bloop="bleep">
	<bar/>
	<baz><quux/></baz>
	<baz><xyzzy/></baz>
</foo>

We are reminded of some pitfalls of the DOM:

// works - XML prolog is removed from document tree
var foo = ajax.responseXML.firstChild;

// WRONG - just a text node with whitespace!
var bar = foo.firstChild;

// works
var first_baz = foo.getElementsByTagName("baz")[0];

// WRONG - just a text node with whitespace!
var second_baz = first_baz.nextSibling;

// works - why?
var xyzzy = second_baz.firstChild;

Larger XML file example

<?xml version="1.0" encoding="UTF-8"?>
<bookstore>
	<book category="cooking">
		<title lang="en">Everyday Italian</title>
		<author>Giada De Laurentiis</author>
		<year>2005</year><price>30.00</price>
	</book>
	<book category="computers">
		<title lang="en">XQuery Kick Start</title>
		<author>James McGovern</author>
		<year>2003</year><price>49.99</price>
	</book>
	<book category="children">
		<title lang="en">Harry Potter</title>
		<author>J K. Rowling</author>
		<year>2005</year><price>29.99</price>
	</book>
	<book category="computers">
		<title lang="en">Learning XML</title>
		<author>Erik T. Ray</author>
		<year>2003</year><price>39.95</price>
	</book>
</bookstore>

Navigating node tree example

// make a paragraph for each book about computers
var books = ajax.responseXML.getElementsByTagName("book");
for (var i = 0; i < books.length; i++) {
	var category = books[i].getAttribute("category");
	if (category == "computers") {
		// extract data from XML
		var title = books[i].getElementsByTagName("title")[0].firstChild.nodeValue;
		var author = books[i].getElementsByTagName("author")[0].firstChild.nodeValue;

		// make an XHTML <p> tag containing data from XML
		var p = document.createElement("p");
		p.innerHTML = title + ", by " + author;
		document.body.appendChild(p);
	}
}

A historical interlude: why XHTML?

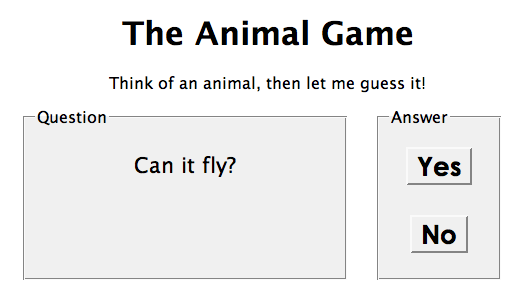

Exercise: Animal game

The Animal Game

Practice problem: Animal game (cont'd)

Attacking the problem

Questions we should ask ourselves:

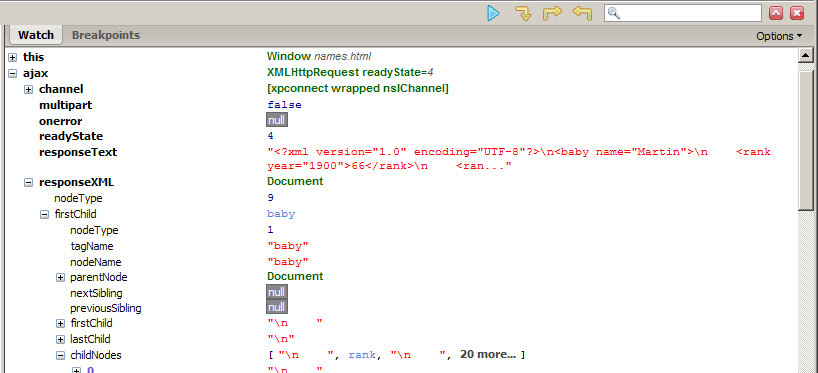

Debugging responseXML in Firebug

Firebug Debug Ajax
