Database design principles (Appendix A)

• database design : the act of deciding the schema for a database
• database schema: a description of what tables a database should have, what columns each table should contain, which columns' values must be unique, etc.
• some database design principles:
  • keep it simple, stupid (KISS)
  • provide an identifier, or key, by which any row can be uniquely fetched
  • eliminate redundancy, especially redundancy of lengthy data (strings)
    • when redundancy is needed, integers are smaller than strings and better to repeat

First database design

• what's good and bad about this design?
  • contains redundancy (name, email, course repeated frequently)
  • there is no "key" column unique to each row

Second database design

• splitting data into multiple tables avoids redundancy
• normalizing: splitting tables to improve structure and remove redundancy / anomalies
• normalized tables are often linked by unique integer IDs

Related tables and keys

• records of one table may be associated with record(s) in another table
  • record in Student table with student_id of 888 is Lisa Simpson's student info
  • records in Grade table with student_id of 888 are Lisa Simpson's course grades
• primary key: a table column guaranteed to be unique for each record

Design question

• suppose we want to keep track of the teachers who teach each course
  • e.g. Ms. Krabappel always teaches CSE 142 and INFO 100
  • e.g. Ms. Hoover always teaches CSE 143
  • e.g. Mr. Stepp always teaches CSE 190M
• what tables and/or columns should we add to the database?

Design answer

• add a teachers table containing information about instructors
• link this to courses by teacher IDs
• why not just skip the teachers table and put the teacher's name as a column in courses?
  • repeated teacher names are redundant and large in size

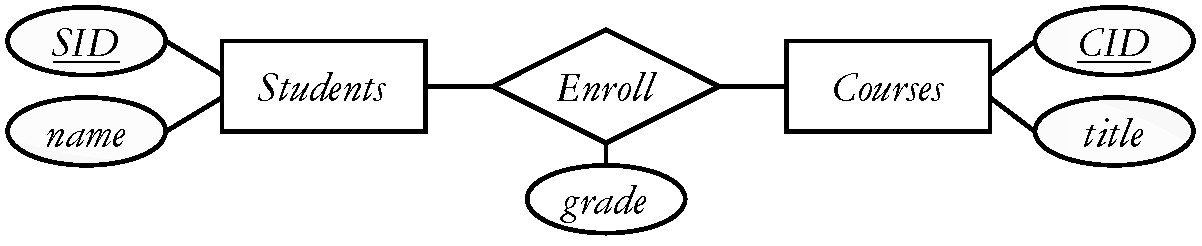

Entities and relationships

• an entity is a record in a table in the database
• a relationship is a connection between two or more entities
• database designers often draw ER diagrams like the above to represent the entities and relationships in their databases

The SQL CREATE TABLE statement (A.1.2)

CREATE TABLE name (
    columnName type constraints,
    ...
    columnName type constraints
);

CREATE TABLE students (
    sid INTEGER UNSIGNED NOT NULL PRIMARY KEY,
    name VARCHAR(20),
    email VARCHAR(32)
);

• adds/deletes an entire new table from this database
• you can add constraints such as NOT NULL for a field that cannot be blank or PRIMARY KEY for a column that must be unique for every row
• related commands: CREATE DATABASE, DROP TABLE, ALTER TABLE

SQL data types

• BOOLEAN
• INTEGER
• FLOAT
• VARCHAR : a string
• DATE, TIME, DATETIME
• BLOB : binary data
• quick reference
